Short description

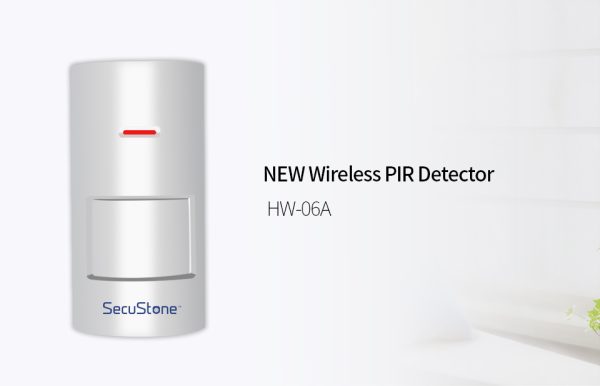

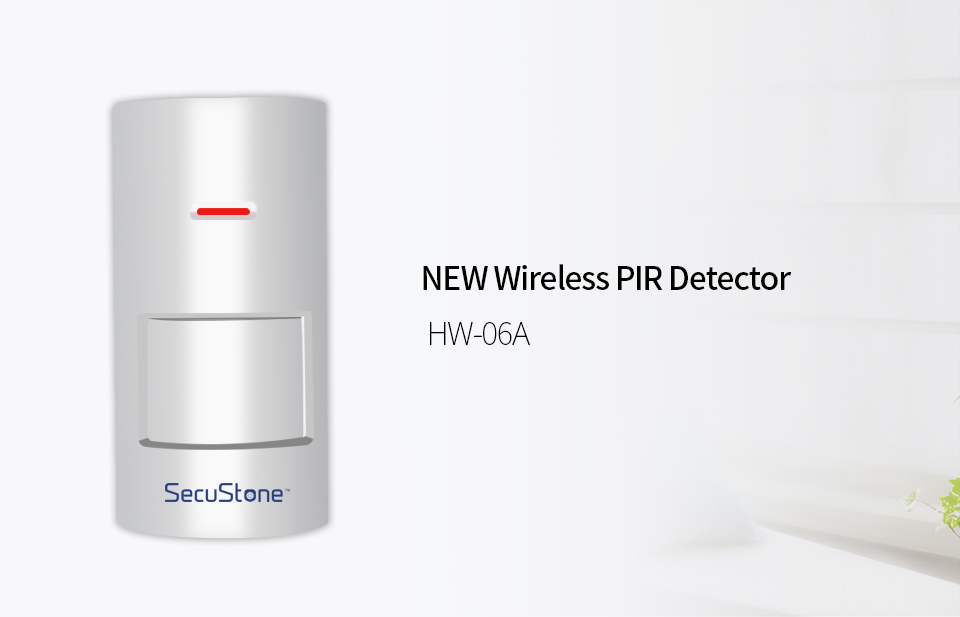

HW06A is a wireless PIR (passive infrared) motion sensor intended for home security systems. This model is known for its resistance to strong light and electromagnetic interference, as well as for reliable motion detection. This sensor is ideal for indoor use in residential and commercial spaces, where reliable motion detection without false alarms is required.
.
Technical specifications:

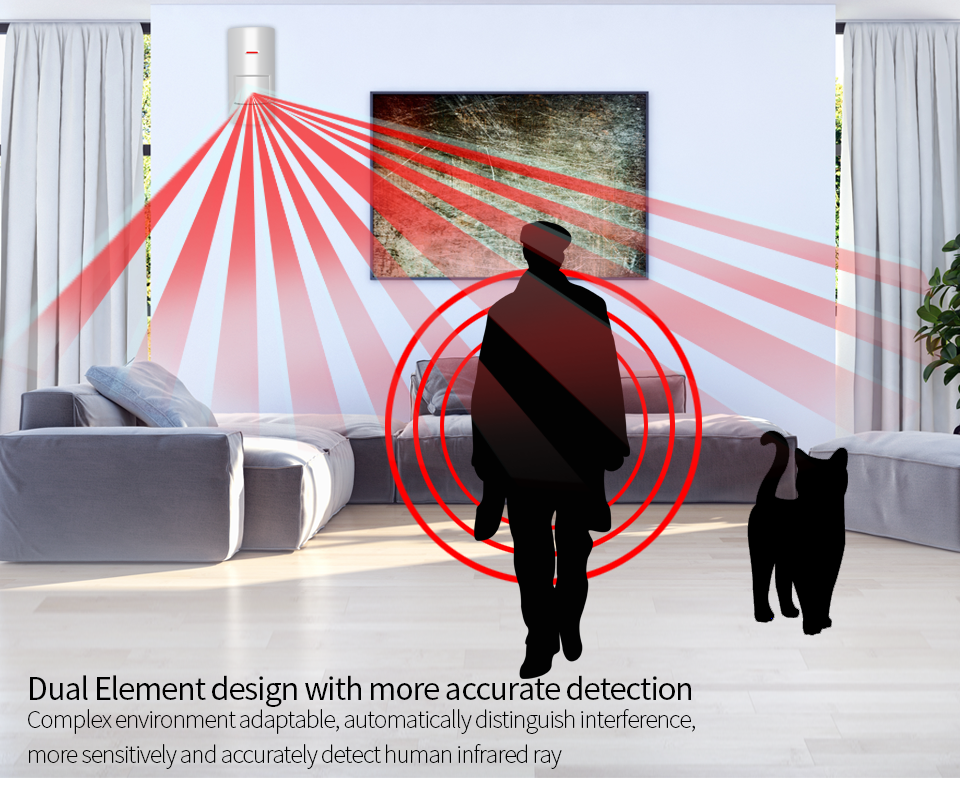

- Sensor type: Dual active light-resistant detector
- Detection range: 6 to 12 meters

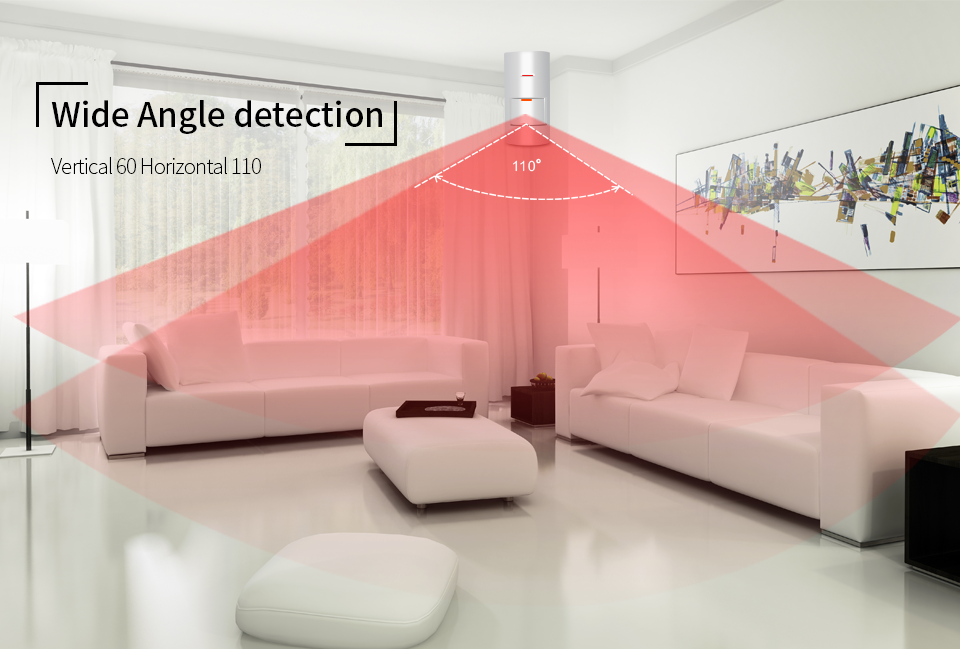

- Detection angle: Horizontal 110°, vertical 60°
- Light resistance: up to 2000 Lux
- Resistance to electromagnetic interference: 30 V/m
- Transmission frequency: 433 MHz ± 0.5 MHz
- Transmission range (without obstacles): up to 80 meters
- Operating temperature: from -10°C to +40°C
- Humidity: up to 90%
- Power supply: 9V battery
- Standby consumption: ≤ 75 µA
- Consumption in alarm state: ≤ 25 mA
- Battery life: about 6 months
Key benefits
- Resistance to strong light and electromagnetic interference: Provides reliable detection even in challenging conditions.
- Temperature Compensation: Maintains stable performance over a wide temperature range.
- Wireless operation: Allows easy installation without the need for cables.
- Double communication: Support for GSM and Wi-Fi networks enables reliable communication and remote control.
- LCD screen: 2.4-inch TFT screen with a simple menu for easy use.
- Sensor support: Ability to connect up to 100 wireless detectors, 10 remote controls and 10 RFID tags, as well as 3 wired zones.
- Multilingual: 11 languages available, including English.
- Notifications: Support for 5 numbers for calls and 5 for SMS notifications.
- Siren: Built-in siren of ≥110dB, with the possibility of connecting an external siren.
- Power supply: Built-in rechargeable lithium battery for operation during power outages.
- Mobile App: Compatible with apps like Tuya Smart and Smart Life for iOS and Android devices.
